Technical analysis of the optimal operating temperatures of various tire compounds and how teams can get the most out of their tires with tire coverage, driving style, and setup adjustments. Includes thermal imaging and data analysis.
The Bottom Line: Getting tires into their optimal temperature window of 90-110°C can mean the difference between victory and also-ran status. Modern F1 teams use thermal imaging cameras, advanced materials, and precise setup adjustments to maintain this critical balance throughout a race.
In Formula 1, where milliseconds determine championships, tire temperature management has become one of the most crucial technical battlegrounds. Every compound, from the hardest C1 to the softest C6, has a specific temperature window where grip peaks and tire wear minimizes. Understanding and exploiting these thermal characteristics separates the frontrunners from the rest of the field.

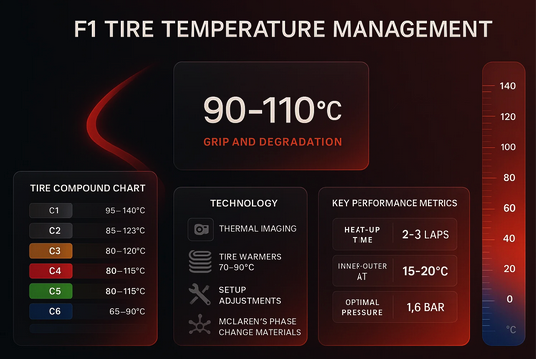

Description of the F1 Tire Temperature Management Infographic
Overview
This professional 3:2 infographic visualizes the complex technical aspects of tire temperature management in Formula 1, based on the comprehensive article about modern F1 tire technology and thermal dynamics.
The Science Behind Temperature Windows
Modern F1 tires work best within a narrow temperature range, typically between 90-110 degrees Celsius. This window varies slightly depending on the compound, with softer tires generally requiring lower operating temperatures than their harder counterparts. When tires operate within this range, the rubber compound becomes optimally flexible, conforming closely to track irregularities and maximizing the contact patch.
Teams have discovered that maintaining tires within their ideal temperature range is typically between 90 and 110 degrees Celsius, although this can vary depending on the specific conditions of the race, and it can take anywhere from 1-3 laps for tires to reach their optimal temperature range.
The consequences of operating outside this window are severe. Cold tires below 80°C provide minimal grip, making cars unpredictable and dangerous. Conversely, overheated tires above 120°C can suffer rapid degradation, blistering, and complete performance collapse. This delicate balance explains why tire management has become such a specialized art form in modern F1.
Thermal Imaging: The Eyes of Modern F1
Teams now employ sophisticated thermal imaging cameras to monitor tire temperatures in real-time. Red Bull has been using thermal imaging cameras to capture the temperature of the tire cooling ducts on McLaren cars when they come in for pit stops, with the focus primarily on the rear tires as they generally overheat more quickly than the fronts. These cameras reveal temperature distribution across the tire surface, allowing engineers to identify hot spots that indicate setup problems or driving issues.
The technology has evolved dramatically since its early implementation. Teams previously could only measure one temperature for the whole tire using pressure and temperature probes, but thermal imaging cameras show where tires are hotter and cooler, helping teams determine if they're running too much camber or too soft suspension.
Compound-Specific Temperature Management
Each tire compound requires different thermal management strategies. The table below shows the optimal temperature ranges for current F1 tire compounds:
Understanding these characteristics allows teams to tailor their strategies accordingly. Softer compounds like the C5 and C6 reach their optimal window quickly but require careful management to prevent overheating. Harder compounds need more aggressive driving initially to generate sufficient heat but reward patience with longer stint capabilities.
The McLaren Mystery: Advanced Cooling Techniques
The 2025 season has spotlighted McLaren's exceptional tire temperature management capabilities. McLaren appears to be lining the inner surface of their wheel drums with phase change materials specifically selected to melt at the exact temperature of the optimal tire window. These materials, similar to those used in 20 inch tyres for road applications, absorb thermal energy while maintaining constant temperatures.
This technology represents a significant advancement in thermal management. Unlike traditional cooling methods, phase change materials provide passive temperature regulation without requiring active systems or electronics. The materials absorb excess heat when tires approach their upper temperature limit and release it when temperatures drop, effectively creating a thermal buffer zone.
Setup Adjustments for Temperature Control
Teams employ various mechanical adjustments to influence tire temperatures:
Tire Pressure Management: Higher pressure generally reduces operating temperatures by decreasing tire flex and internal friction. However, excessive pressure reduces the contact patch, compromising grip. Teams must find the optimal balance, typically around 180 kPa for warm tires.
Suspension Settings: Softer suspension allows tires to work harder, generating more heat. Anti-roll bar adjustments help balance temperatures between left and right sides, crucial for circuits with unequal cornering loads.
Camber Angles: Negative camber increases the tire's working area during cornering, potentially raising temperatures. Teams adjust camber to achieve even temperature distribution across the tire width, ideally within 5-10°C difference from inside to outside edge.
Toe Settings: Toe-in on front tires and toe-out on rears can increase tire scrub and generate additional heat, useful for getting temperatures up quickly in qualifying or after safety car periods.
Driving Techniques and Heat Generation
Driver input plays a crucial role in tire temperature management. Smooth, progressive driving helps maintain consistent temperatures, while aggressive inputs can cause dangerous spikes or destructive heat cycles. Teams and drivers must carefully monitor tire temperatures and adjust their approach as needed to ensure that the tires are always performing at their best.
The out-lap after a pit stop presents particular challenges. Despite tire warmers heating tires to approximately 80-100°C before installation, drivers must carefully build temperature without overheating. Too gentle an approach leaves tires cold and grip-less; too aggressive risks immediate degradation.
Data Analysis and Predictive Modeling
Modern F1 teams combine thermal imaging data with predictive algorithms to optimize tire strategies. The optimal control problem solver needs to 'manage' the state of tires throughout a race to ensure that optimal race performance is achieved, as grip reduces when tires get worn or are not operated within their optimal temperature window.
This data-driven approach allows teams to predict when tire performance will drop and plan pit stops accordingly. Engineers can identify the precise moment when degradation accelerates, maximizing stint length while avoiding catastrophic performance loss.
The Future of Thermal Management
As F1 continues evolving, tire temperature management remains a critical competitive advantage. The FIA has recently tightened 2026 rules to close off tire cooling tricks, explicitly banning teams from exploiting any tire cooling techniques, indicating the governing body's awareness of how advanced these systems have become.
The sport's technical arms race in thermal management shows no signs of slowing. Teams investing in advanced materials science, computational fluid dynamics for cooling duct optimization, and real-time thermal monitoring systems will likely maintain competitive advantages.
Conclusion
Tire temperature management in Formula 1 represents a perfect intersection of materials science, aerodynamics, and driving skill. Teams that master this complex thermal puzzle gain decisive advantages in qualifying pace, race strategy flexibility, and tire longevity. As the technical regulations continue evolving, the fundamental importance of keeping rubber in its optimal temperature window remains unchanged – making warmed-up tires the difference between podium celebrations and points missed.
The integration of thermal imaging technology, advanced materials, and precision engineering continues pushing the boundaries of what's possible in tire performance optimization. For teams willing to invest in understanding these thermal dynamics, the rewards measured in championship points make every degree count.
